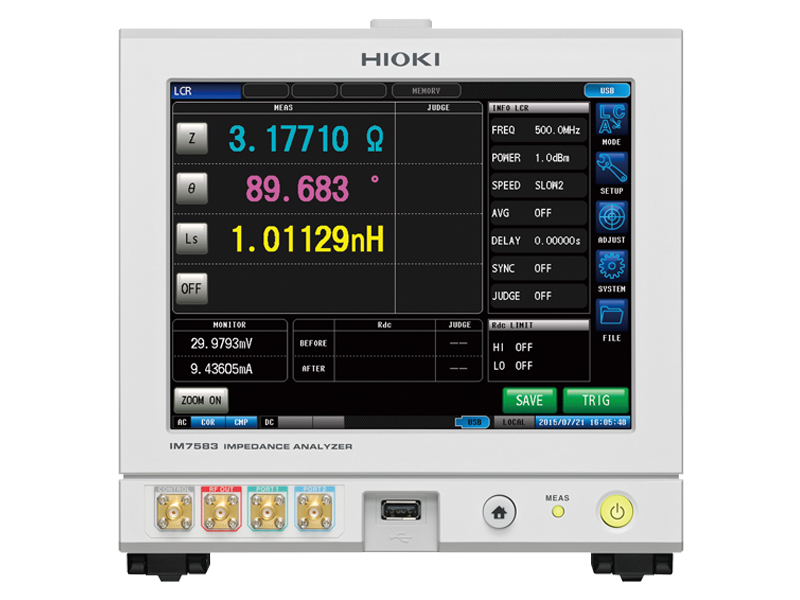

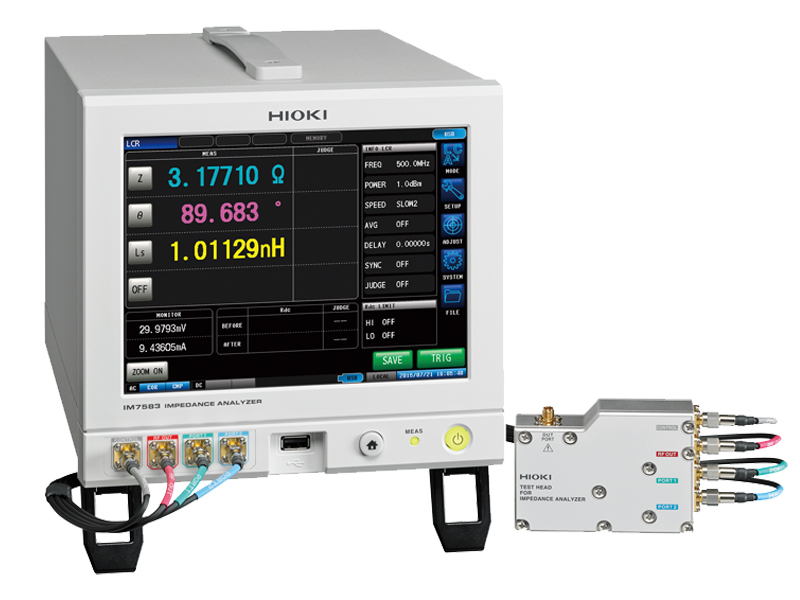

HIOKI IM7583-01
Impedance Analyzer 1MHz - 600MHz with 1 m Connection Cable
Delivery time: approx. 10-25 working days
17'558.00 CHF (18'980.20 CHF incl. tax)
In cart On offer list

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM7583 offers a top measurement time of 0.5ms over a 1MHz to 600MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.



Technical Data

Frequency 1 MHz - 600 MHz
Inductance 0.0265 nH - 0.795 mH
Capacitance 0.0531 pF - 1.59 μF
Resistance5 kΩ
Basic Accuracy0.65 %
Measurement Parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Voltage Level 4 mV - 502 mV rms
InterfaceUSB, Ethernet, D-sub 37-pin I/O, RS232 (opt.), GPIB (opt.)
Warranty 3 years
